Description
Power: 10Hp
Power: 7.5Kw
Boiler: 500lts
Maximum Pressure: 11bar
Aspirated Air: 1230Lts/min
Pressure: 145 psi
Supply: 400V/TRIF/50Hz
Connection Thread: 3/4
Group: NB10
Cylinders: 2
Stages: 2
Lubricated: Yes
Dimensions: 2080x700x1450
Weight: 298Kgs

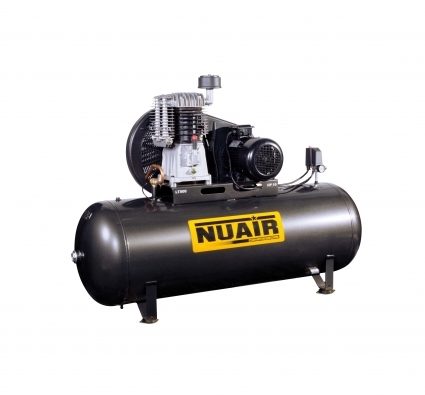

DOUBLE STAGE COMPRESSORS – The cylindrical double stage compressors, lubricated and with belt transmission have been designed and built for hard work. With Star-Delta panel. The cylindrical double stage compressors, lubricated and with belt transmission have been designed and built for hard work.
Large dimension suction filter designed to reduce noise and optimize compressor performance.
Double stage head group with iron cylinder equipped with large collectors between stages and subsequent finning for greater cooling.
Robust plastic belt guard that protects all moving parts and thanks to its design increases ventilation over the head.
Collector tube designed to improve air cooling at the boiler inlet.
Professional ball purge valve with increased passage to prevent obstructions and blockage.
Large anti-vibration feet that provide greater stability during operation. Included in the compressor.
With Star-Delta panel.
Additional information
| Weight | 320,0 kg |
|---|
