Power: 20hp
Power: 15kw
Boiler: 500lts
Maximum Pressure: 10Bar
Real Air: 1,850 Lts/min
Pressure: 145 psi
Supply: 400V/TRIF/50Hz
Connection Thread: 3/4
Refrigerant Type: R134,a
dbA: 70db(A)
Group: FS26TF
Lubricated: Yes
Dimensions: 1980x650x1630
Weight: 425kg

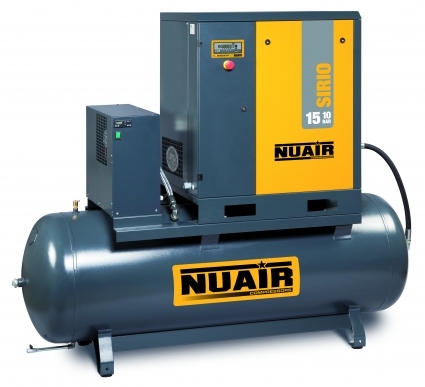

SOUNDPROOF SCREW COMPRESSOR ON
BOILER WITH REFRIGERATED DRYER.
Technical features and extras that
it incorporates: Poly-V belt drive that guarantees
long life and minimal maintenance.

Electromechanical ON / OFF control, easy to use with and without idle operation, which results in greater energy savings;
Independent ventilation of the main electric motor; Easy condensation discharge;
High compactness; Minimum energy consumption; Very quiet:

SOUNDPROOF SCREW COMPRESSOR ON
TANK WITH REFRIGERATED DRYER.
ETMII electronic control, indicates: working pressure, working and load hours, load / idle status, oil temperature, rotation direction.
*4 maintenance warnings.*6 Alarm warnings.
The screw groups completely designed and
manufactured in Italy. As well as the intake valve and the separator block with minimum pressure valve.
The Poly-V belt guarantees long life and
minimal maintenance
Centrifugal fan, thermostatically controlled for ideal cooling,
maintaining a low noise level.
The internal elements are very accessible, for
quick and easy routine maintenance.
With Refrigerated Dryer.
IE3 Premium Efficiency Motors: The high-efficiency IE3 motors, combined with our own high-performance screw groups, allow reducing energy-related costs. In addition,
IE3 motors reduce CO2 emissions: an
important contribution to environmental protection
